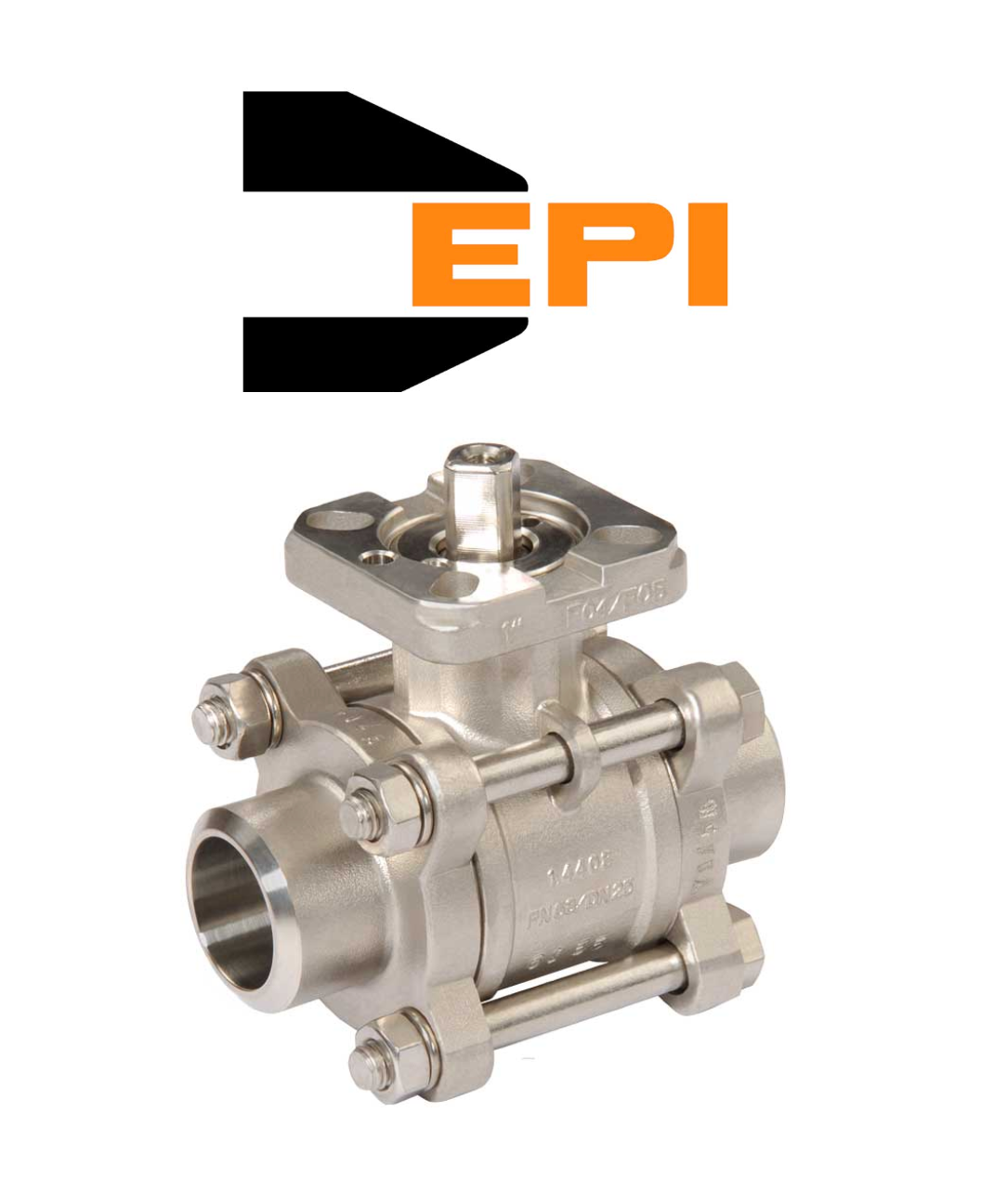

EPI VLA-521B Pneumatically Actuated Ball Valve, DN32/PN63, 330380
EPI VLA-521B Pneumatically Actuated Ball Valve, DN32/PN63, 330380
Supplier Part Number: 330380
Application Reference Number: 6620340
New item: OEM in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.
An EPI ball valve with a nominal diameter of DN32 and a pressure rating of PN63. The pneumatic actuator provides automated on/off control via a compressed air signal. Ball valves are known for their reliable shut-off capability.
This valve is a core component in industrial automation and process control systems. It is used to control fluid flow in a wide range of industries, including chemical processing, water treatment, and food and beverage manufacturing.
| Nominal diameter: | DN8 to DN100 |
| 1/4" to 4" | |
| Nominal pressure: | PN63 |
| Passage: | full passage |
| Installation length: | according to DIN 3202-S13 (old) |
| according to DIN EN 12982-ETE67 (new) | |
| Connection: | Butt-weld welding ends |
| - according to DIN EN 12627 | |
| - Abbreviation for "BW" ends | |
| Execution: | - ISO-Top mounting flange |
| according to ISO 5211 | |
| - Antistatic design | |
| - 4-edge selector shaft | |
| - 3-part modular design | |
| (modular system) | |
| Temp. range: | -10°C to +200°C |
| (See pressure/temperature diagram) |
Images are for illustrative purpose only, actual products may vary.
| Equipment Manufacturer | EPI |
| Component Manufacturer | EPI |
| Condition | New |
| Location | Germany |
