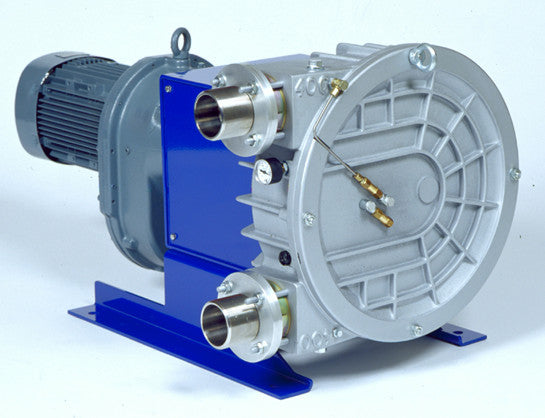

Elro Peristaltic Pump XP400

Tetromi supplies the high-capacity ELRO XP series, characterized by maximum discharge volumes at low rotary speeds to optimize hose service life. These units are equipped with a newly developed vacuum system integrated directly into the torsion-resistant pump housing.

Model: ELRO Peristaltic Pump XP400.

Application: Transfer of viscous pulpy products, contaminated fluid residues, and high-solid industrial slurries in harsh conditions.

Technical Specifications:
• Max. flow rate: 9.6 m3/h
• Max. system pressure: 13 bar (188 psi)
• Max. dry suction lift: 9.5 mWs
• Internal hose diameter: 63 mm
• Weight without drive: 176 kg
• Housing material: Cast Aluminum.

Technical Documentation:
Operating Manual and Installation Instructions
Technical Datasheet for ELRO Series IP and XP Peristaltic Pumps
