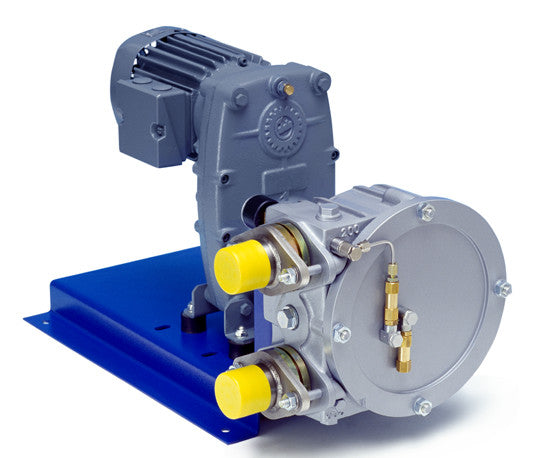

Elro Peristaltic Pump XP200
Technical Specifications
Product Details & Description
The ELRO XP series is characterized by maximum discharge volumes at low rotary speeds to optimize hose service life. These units are equipped with a newly developed vacuum system integrated directly into the torsion-resistant pump housing. Tetromi provides full configuration support, matching large cross-section hoses and high-capacity sliding shoe rotors to your specific media, including viscous pulpy residues and fluids with high solids content.
Model: ELRO Peristaltic Pump XP200.
Application: Wastewater industry, building industry, chemical residue transfer, and environmental emergency response technology.
Technical Specifications:
• Max. flow rate: 3.2 m3/h
• Max. system pressure: 13 bar (188 psi)
• Max. dry suction lift: 9.5 mWs
• Internal hose diameter: 35 mm
• Weight without drive: 60 kg
• Rotor Type: High-capacity sliding shoe.
Technical Documentation:
Operating Manual and Installation Instructions
Technical Datasheet for ELRO Series IP and XP Peristaltic Pumps
