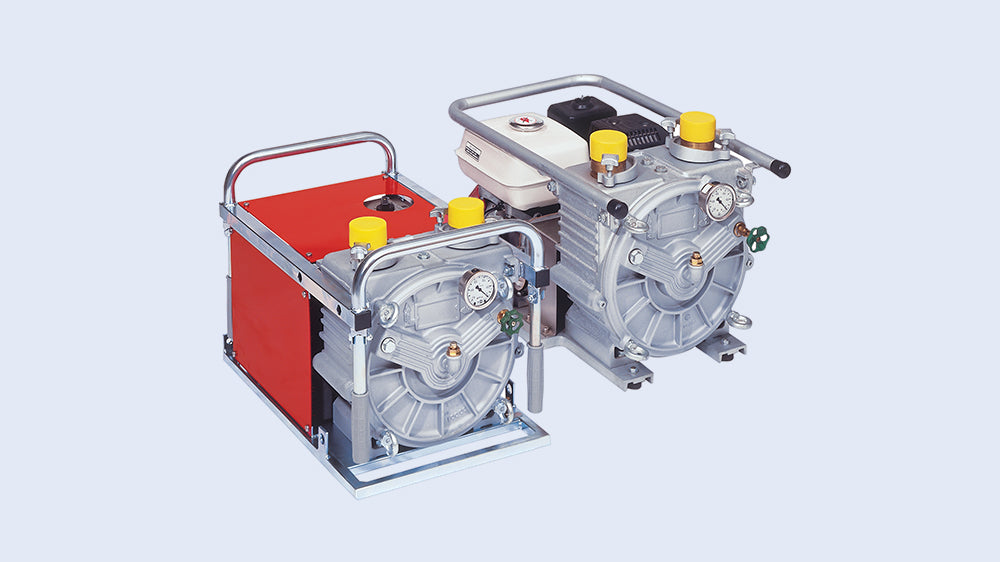

Elro Peristaltic Pump M300
Technical Specifications
Product Details & Description
The ELRO M300 mobile series is a high-capacity all-round peristaltic pump designed for safe and efficient displacement in varied industrial conditions. This unit provides high suction capacities and is available with electric, petrol, diesel, or hydraulic drive options. The patented housing design enables thin-walled hoses to reach full cross-section via permanent vacuum, delivering capacities up to 20 m3/h. The design allows for the changing of pumping hoses and internal components without additional special tools. The wetted part consists only of the hose, which can be selected based on the required media compatibility.
Full model name: ELRO Peristaltic Pump M300.
Application: Emergency recovery on ships, sanitary disposal for fast trains, loading road tankers, and cleaning contaminated basins in the chemical and power industries.
Technical Specifications:
• Max. flow rate: 20.0 m3/h (333 l/min)
• Max. discharge pressure: 2.0 bar (29 psi)
• Max. suction height: 9.5 mWs (dry self-priming)
• Max. solid size: 12.0 mm
• Weight range: 52 kg to 76 kg (drive dependent)
• Wetted materials: CSM, NBR, NR.
Technical Documentation:
Technical Datasheet
Operating Manual and Installation Instructions
