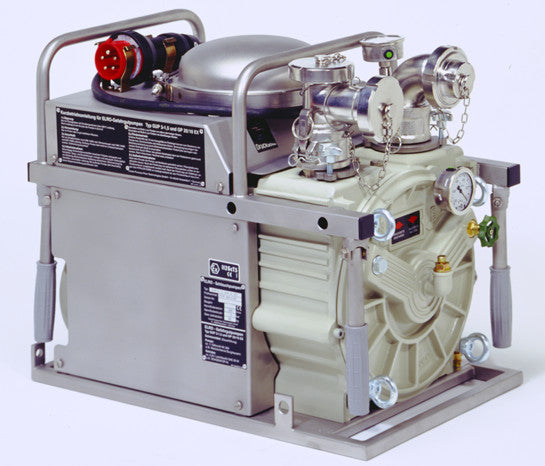

Elro Peristaltic Pump GUP3-1.5

The ELRO GUP3-1.5 is a specialized mobile unit engineered for the control of accidents involving hazardous materials. Designed in compliance with DIN 14427, this unit utilizes an integrated vacuum system to maintain constant volume capacity regardless of the age of the hose. The unit is equipped with high-grade electrically conductive Hypalon (CSM) hoses, resistant to aggressive acids, alkaline solutions, and alcohols. It features a two-stage capacity adjustment and is provided with a motor protection switch and fire brigade carrying frame. The design ensures that thin fluid films or viscous pulpy products containing dirt and grit are quickly absorbed and pumped into safe receptacles.

Full model name: ELRO Peristaltic Pump GUP 3-1,5.

Application: Recovery of thin fluid films or viscous residues by fire brigades, technical support services, works safety services, and armed forces.

Technical Specifications:
• Nominal delivery: 150/300 l/min (two-stage speed)
• Max. discharge pressure: 1.5 bar
• Max. dry suction lift: 9.5 mWs
• ATEX classification: II 2G Ex h IIB T3 Gb
• Operating weight: 98.4 kg
• Standard compliance: DIN 14427.

Technical Documentation:
Technical Datasheet
Operating Manual and Installation Instructions
