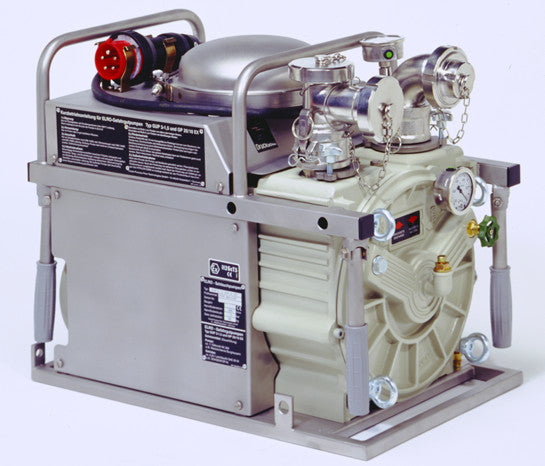

Elro Peristaltic Pump GP20/10Ex

The ELRO GP20/10Ex is a high-mobility hazardous material pump characterized by its ability to handle contaminated, viscous, or pulpy media with high solids content. The series operates on a positive displacement principle with vacuum-backed restoring force, allowing for a dry self-prime up to 9.5 m without additional accessories. Constructed with a fire fighter frame in stainless or galvanized steel, the unit can be equipped with either Nitrile (NBR) hoses for oil-fighting or Hypalon (CSM) for general chemical response. All wetted hoses are electrically conductive to ensure safe operation in potentially explosive atmospheres.

Full model name: ELRO Peristaltic Pump GP 20/10 Ex.

Application: Petroleum recovery, chemical spill containment, and environmental technology residue pickup in explosive zones.

Technical Specifications:
• Nominal delivery: 150/300 l/min (two-stage speed)
• Max. discharge pressure: 1.5 bar
• Max. dry suction lift: 9.5 mWs
• ATEX conformity: II 2G Ex h IIB T3 Gb
• Operating weight: 90.4 kg
• Max. solid size: 12.0 mm.

Technical Documentation:
Technical Datasheet
Operating Manual and Installation Instructions
