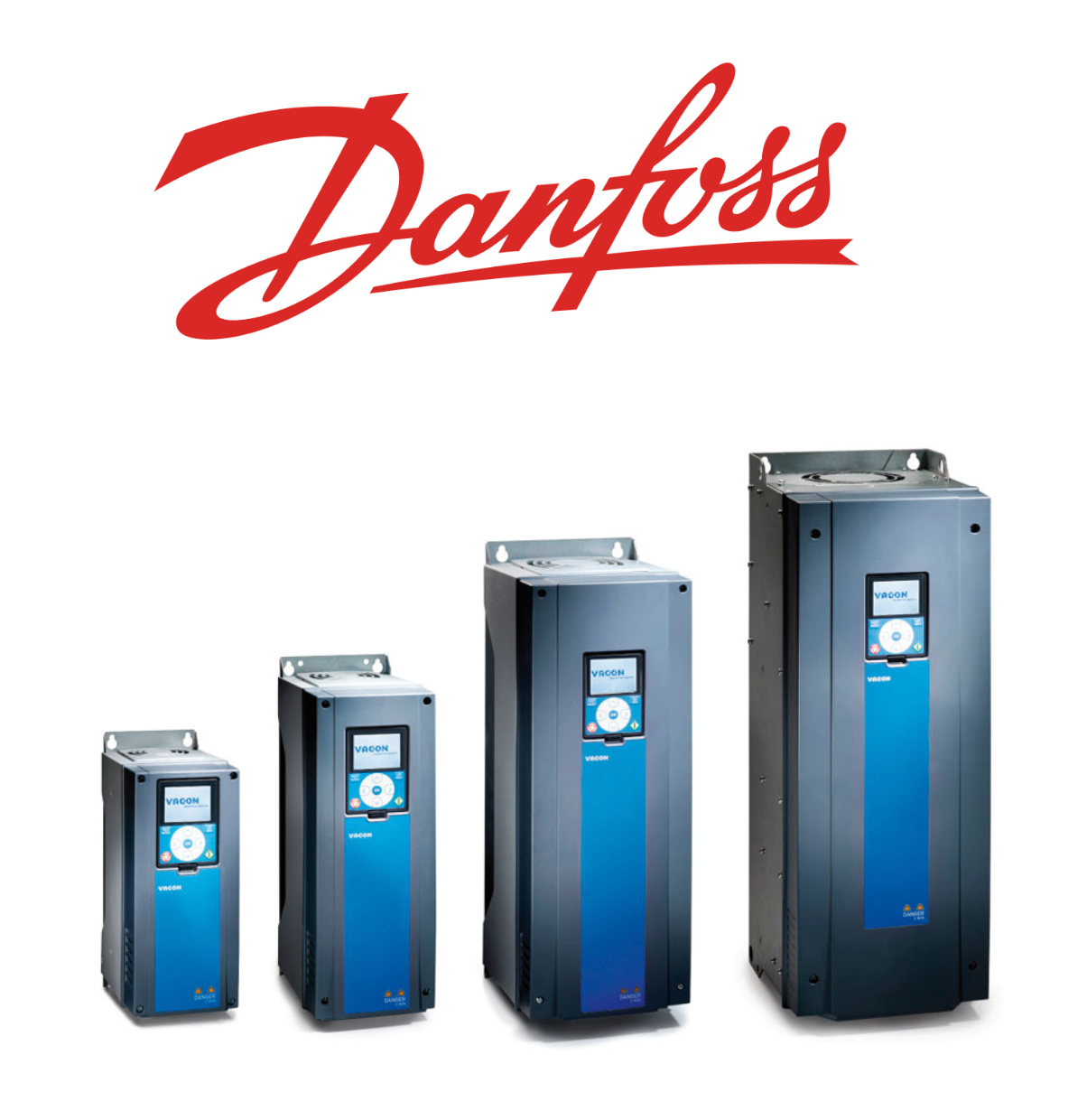

Danfoss VACON0100-3L-0016-5-FLOW+IP54 iC7-Automation Frequency Converter

Supplier Part Number: VACON0100-3L-0016-5-FLOW+IP54

New item: OEM component in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.

A 7.5 kW frequency converter with part number VACON0100-3L-0016-5-FLOW+IP54, from the VACON 100 FLOW series. It operates on 380-500 V power at 16 A and has an IP54 rating, providing protection against dust and splashing water.

Part Number: VACON0100-3L-0016-5-FLOW+IP54

Manufacturer Part Number: 135N4434

Product Series: Danfoss Vacon 100 Flow

Product Type: AC Drive / Frequency Converter

Application: Fan and Pump Control

Power Rating (Low Overload / Normal Duty): 7.5 kW

Power Rating (Low Overload / Normal Duty): 10 HP

Input Voltage: 3-Phase 380-500 V

Input Phase: Three Phase

Output Voltage: 3-Phase 0-Input Voltage (Nominal 400V)

Output Phase: Three Phase

Continuous Current (Low Overload / Normal Duty): 16 A

Input Current: 16 A

Output Frequency Range: 0 - 320 Hz

Enclosure Rating: IP54 / UL Type 12

Frame Size: MR5

Dimensions (Net): 144mm Wide x 419mm High x 214mm Deep

Dimensions (Gross / Shipping): 190mm Wide x 477mm High x 257mm Deep

Weight (Net): 10 kg

Weight (Gross / Shipping): 11 kg

Overload Capacity (Low Overload): 110% for 60 seconds (every 10 minutes)

Control Type: VxF (Voltage/Frequency) or Sensorless Vector control

EMC Filter: Integrated, Category C2 (IEC EN61800-3)

Keypad: Graphical Keypad

Standard Interfaces: Modbus RTU (RS485), Modbus TCP (Ethernet)

Standard I/O: 2 x Analog Inputs, 6 x Digital Inputs, 1 x Analog Output, 3 x Relay Contact set

Key Software Features: PID Control, 2-Zone PID Control, Fire Mode, Real-Time Clock with Calendar, Multipump Control

This drive is used for energy optimization and process control of pump, fan, and blower systems, for example Evac application 6622576. Its intelligent features protect equipment from faults like dry-running, while its IP54 rating allows for reliable operation in challenging industrial and marine settings, including wastewater treatment and HVAC.

Images are for illustrative purpose only, actual products may vary.
