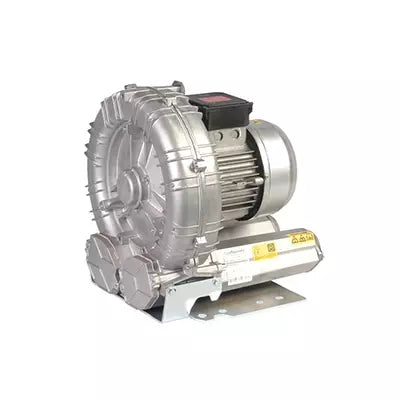

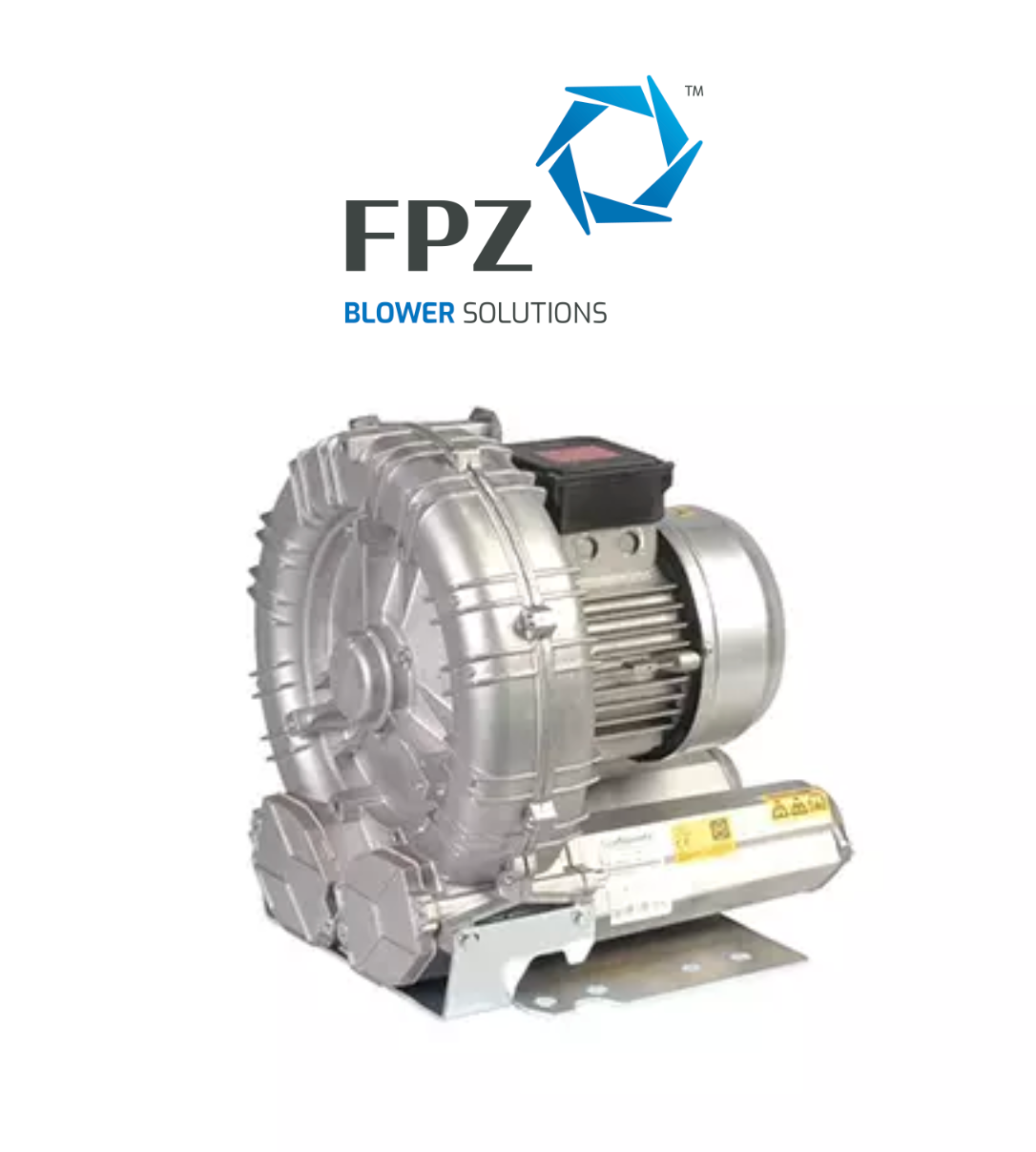

FPZ S.p.A. Centrifugal Blower SK08TD00+0034
FPZ S.p.A. Centrifugal Blower SK08TD00+0034
Supplier Part Number: SK08TD00+0034
Application Reference number: 6575333
New item: OEM in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.
FPZ centrifugal blower, part number SK08TD00+0034. A blower that uses a rotating impeller to increase the speed and pressure of air or gas for continuous, high-volume movement.
This blower is a core component for a wide variety of industrial processes, including wastewater aeration, pneumatic conveying, and industrial vacuum systems. It is a reliable solution for air and gas transfer in water treatment facilities and material handling systems.
SK08TD00+0034 technical details.
| Parameter | Value |
| Segment: SK |
Internal Production / Supplier Code
|
| Segment: 08 |
Model Size / Family: K08 model size within the FPZ K-Series
|
| Segment: TD |
Blower Configuration: Twin Impeller, Two Stage
|
| Segment: 00 |
Base Model Identifier
|
| Segment: +0034 |
OEM Customisation Code for Evac application
|
| Motor Speed (60 Hz) | 3500 RPM |
| Motor Speed (50 Hz) | 2900 RPM |
| Maximum Airflow (60 Hz) | 625 m³/h |
| Maximum Airflow (50 Hz) | 518 m³/h |
| Maximum Vacuum | 427 mbar |
| Installed Motor Power | 11.2 kW |
| Noise Level (60 Hz) | 79.9 dB(A) |
| Noise Level (50 Hz) | 77.9 dB(A) |
| Allowed Ambient Temperature | -15 to +40 °C |
| Weight | 112.7 kg |
| a (Overall Length) | 457 mm |
| b (Motor Length) | 498.1 mm |
| c (Blower Housing Width) | 269 mm |
| G (Port Connection) | GAS 3 inch Female |
| I1 (Port Flange Diameter) | 186.9 mm |
| n (Base Length) | 300 mm |
| o (Base Width) | 350 mm |
| p1 (Overall Height) | 649 mm |
| p2 (Base to Centerline) | 391.9 mm |
| q (Mounting Hole Offset) | 24.9 mm |
| r (Mounting Foot Width) | 136.9 mm |
| t (Mounting Hole Thread) | M8 |
| w (Overall Width) | 481.1 mm |
| x (Mounting Hole Pattern L) | 319 mm |
| y (Mounting Hole Pattern W) | 260.1 mm |
*Images are for display purposes only. Actual products may vary
| Equipment Manufacturer | FPZ S.p.A. |
| Component Manufacturer | FPZ S.p.A. |
| Component Name | Centrifugal Blower |
| Condition | New |
