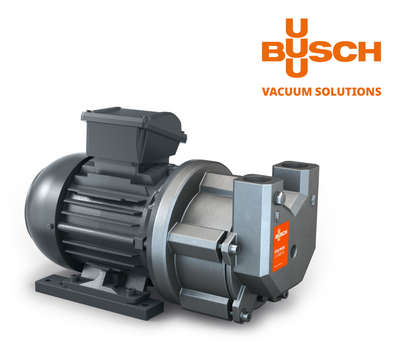

Busch Vakuumteknik N11836498 Dolphin Lx 0140 C Ak0 Mhux Liquid Ring Vacuum Pump

Part number: N11836498 The Busch Dolphin LX 0140 C is a robust, single-stage liquid ring vacuum pump designed for continuous industrial operation. This compact monobloc unit is engineered to handle saturated gases, vapors, and small amounts of entrained liquids with high particle tolerance.

Full model name: Dolphin LX 0140 C AK0 MHUX

Application: Ideal for vacuum packaging, food processing, chemical processing, and marine vacuum systems including Evac sanitation units.

Technical Specifications:
• Nominal Pumping Speed: 100 m3/h (50 Hz) / 120 m3/h (60 Hz)
• Ultimate Pressure: 33 hPa (mbar)
• Motor Rating: 3.0 kW (50 Hz) / 4.0 kW (60 Hz)
• Voltage: 380-400V
• Frequency: 50 Hz
• Noise Level: 70 dB(A)
• Design: Single-stage liquid ring with directly flange-mounted motor
• Operating Fluid: Water (standard)

Technical Documentation:
Operating Manual
